import numpy as np
from matplotlib import pyplot as plt
def disturb(scale):
"""
返回一个指定标准差的正太扰动
:param scale: 标准差
:return:
"""
return np.random.normal(0, scale)

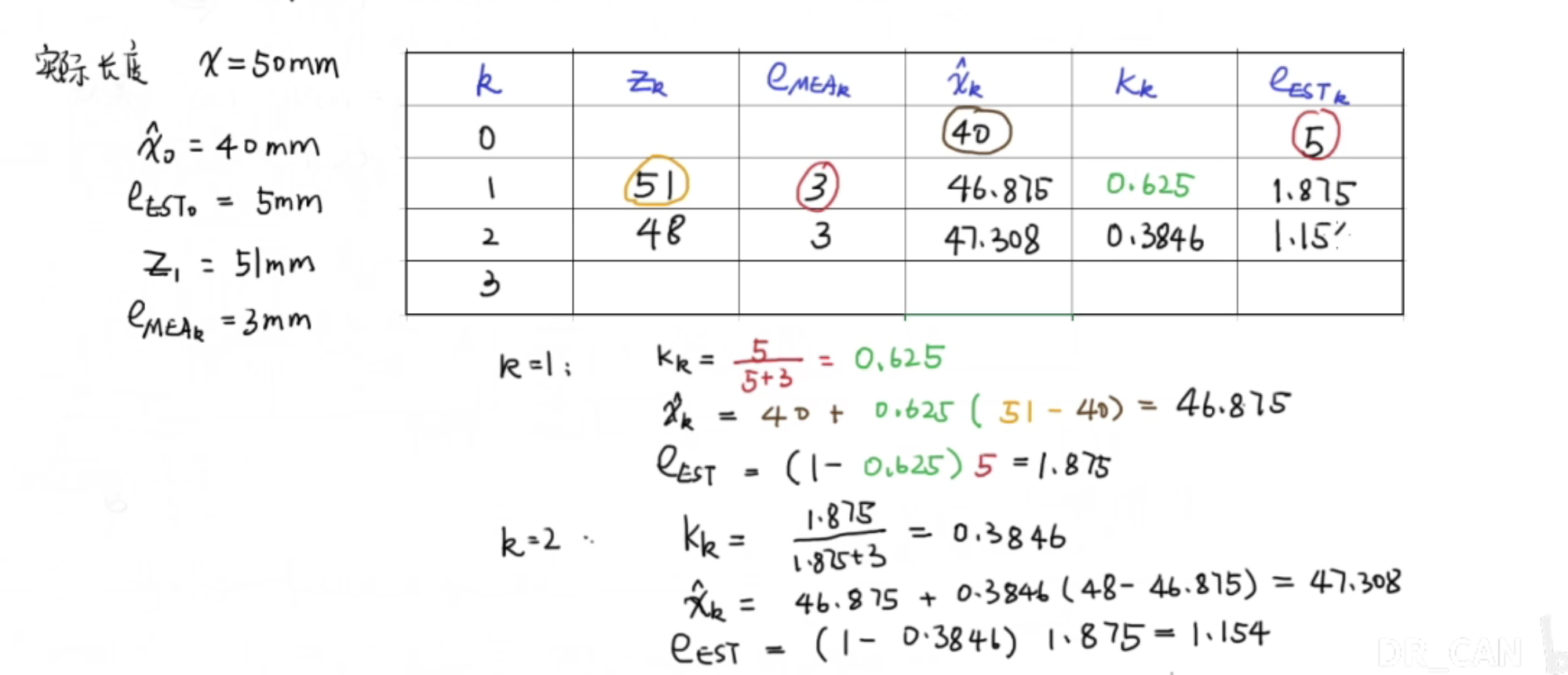

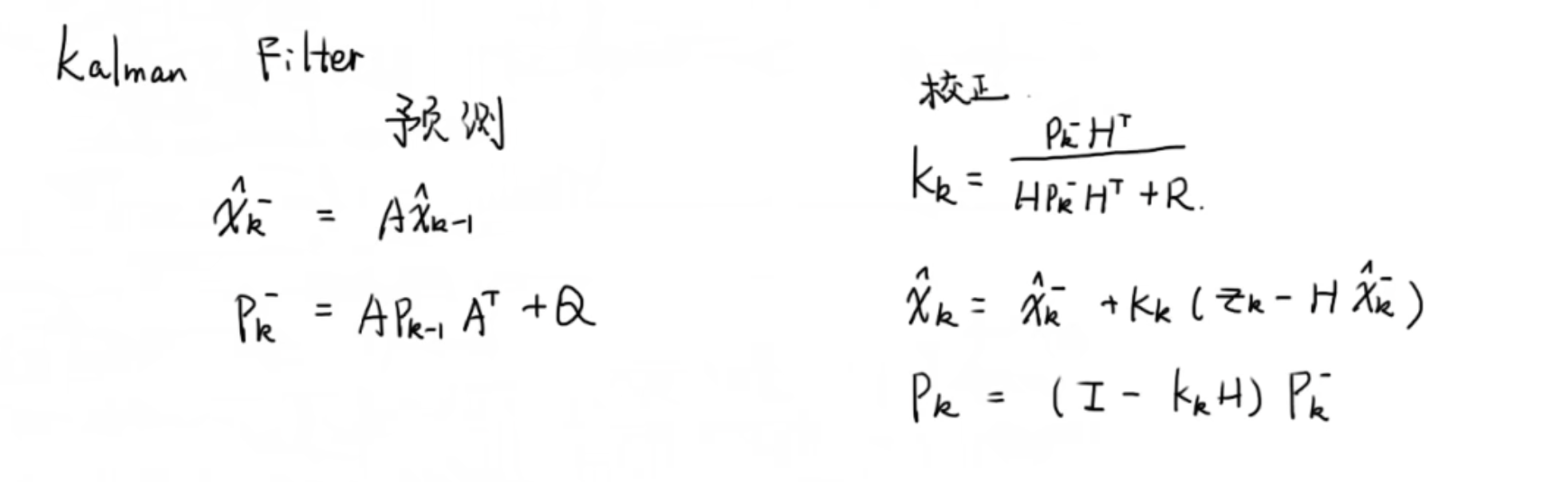

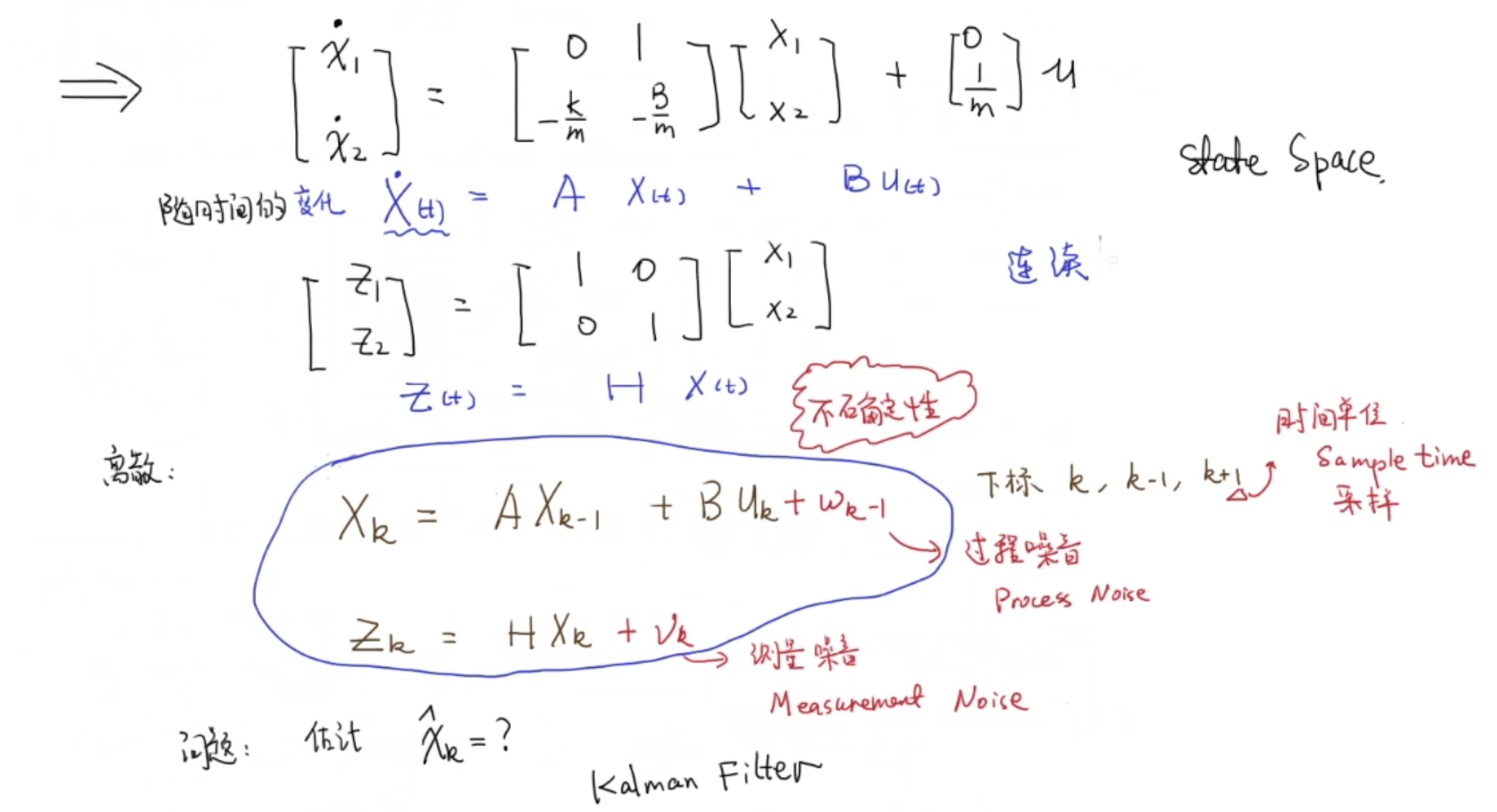

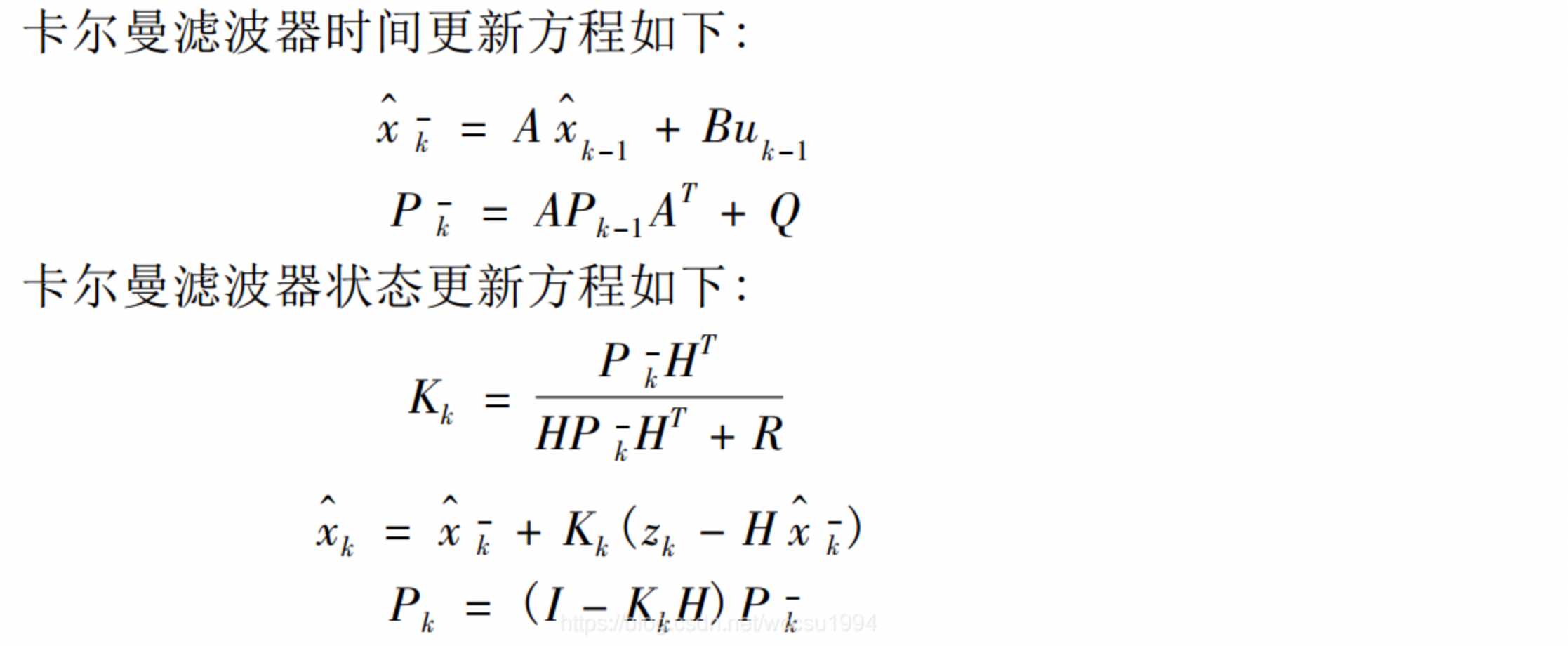

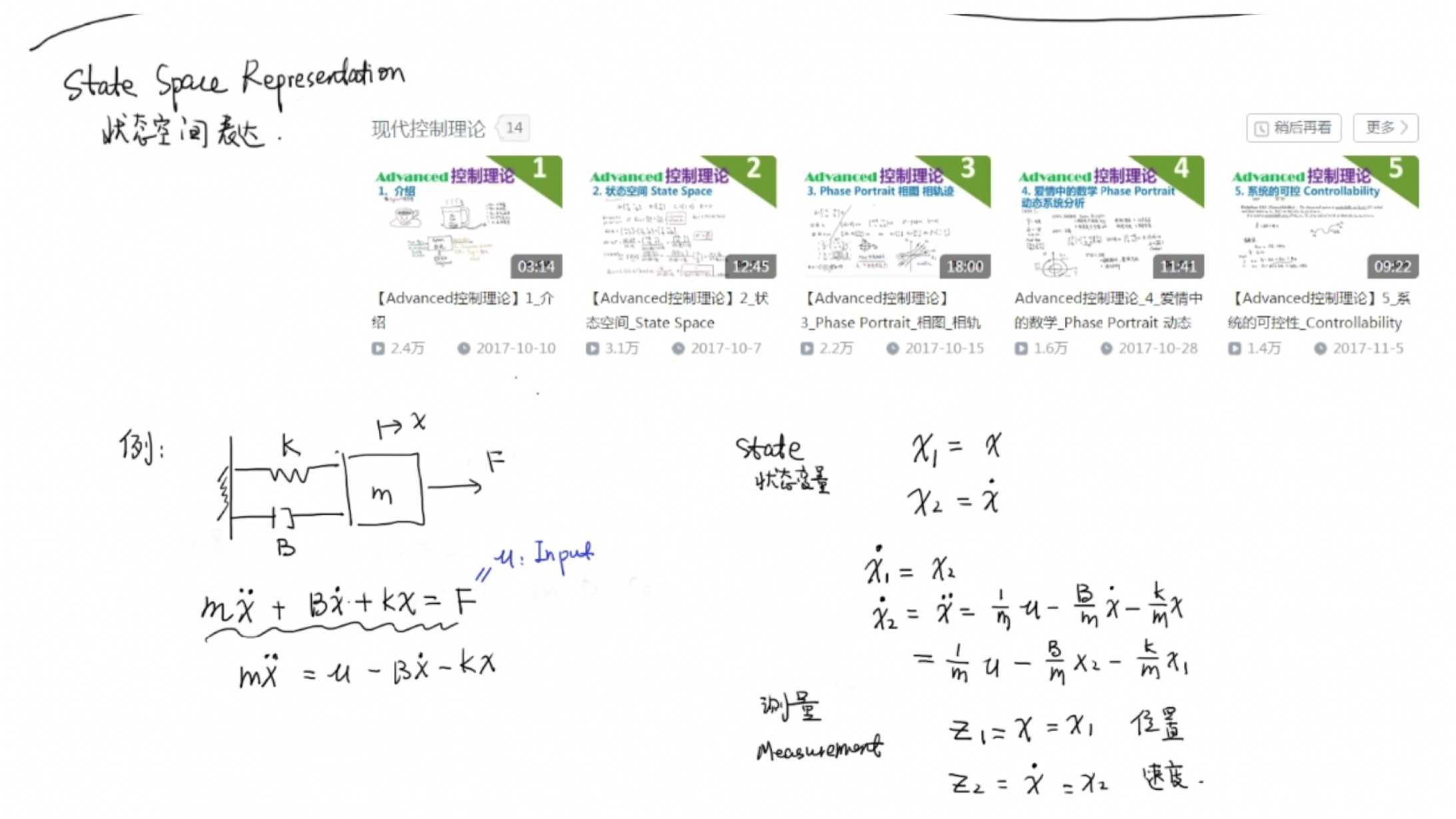

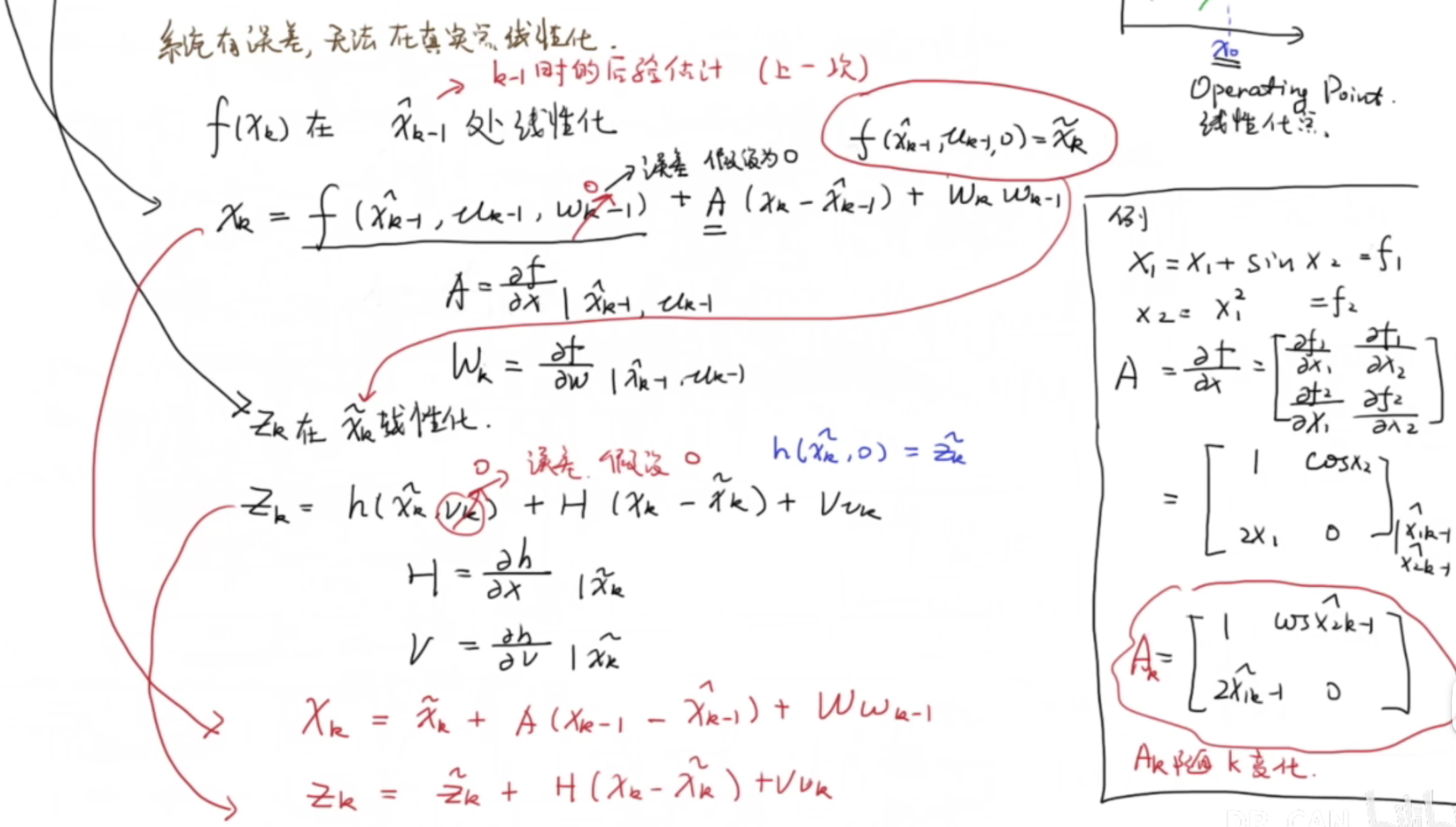

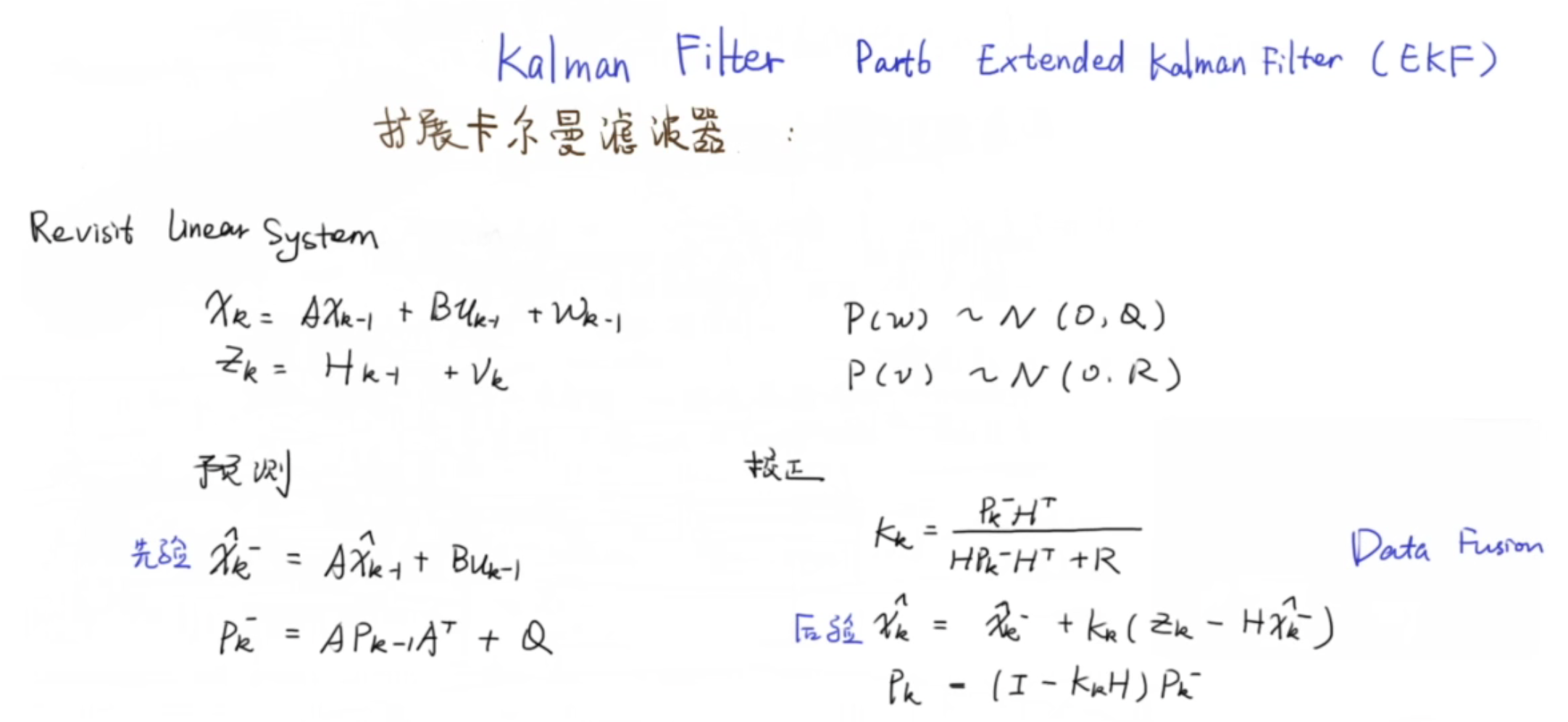

def calc_prior_hx(A, hx_k_1, B, u_k_1):
"""
计算先验估计值
:param A: 预测使用的状态转移矩阵
:param hx_k_1: 上一次的后验估计值
:param B: 将输入转为状态的转移矩阵
:param u_k_1: 系统输入
:return: 先验估计值
"""
hx_prior_k = np.dot(A, hx_k_1)
if B is not None and u_k_1 is not None:
hx_prior_k += np.dot(B, u_k_1)
return hx_prior_k

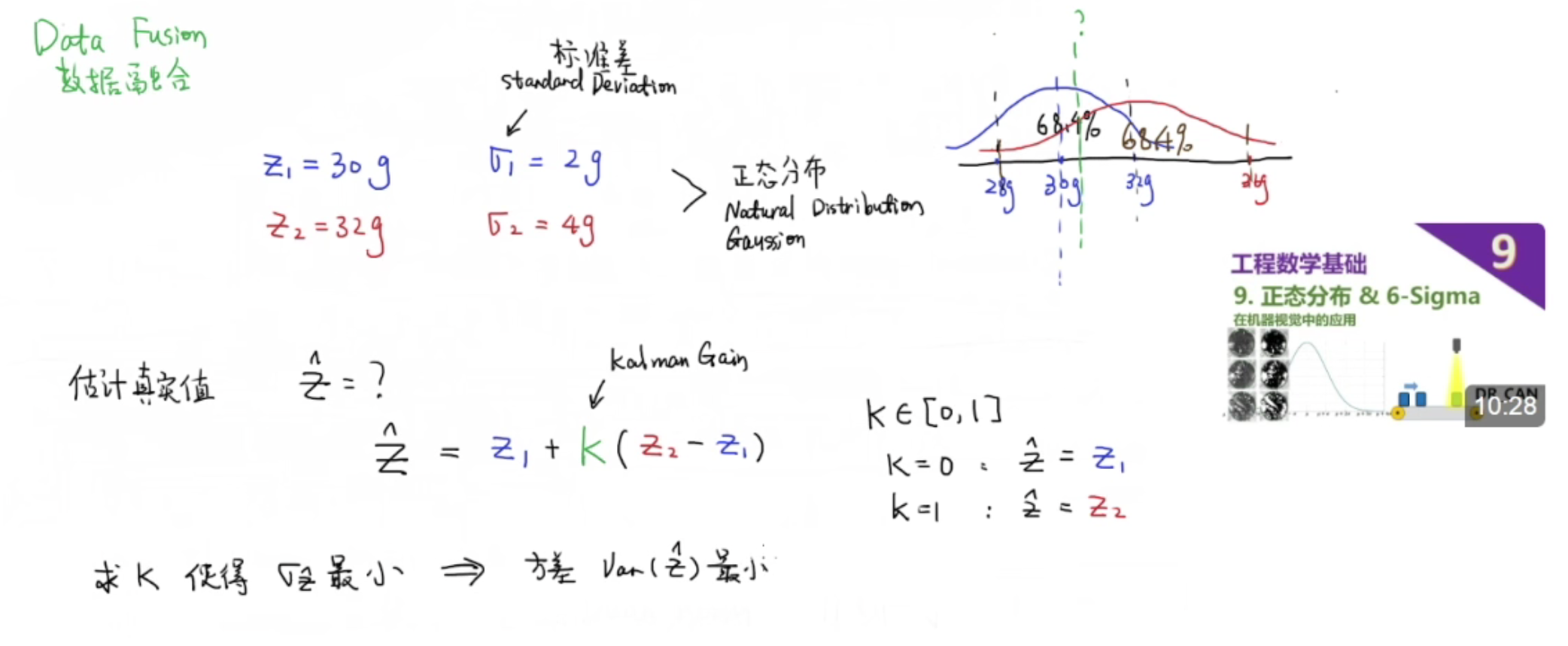

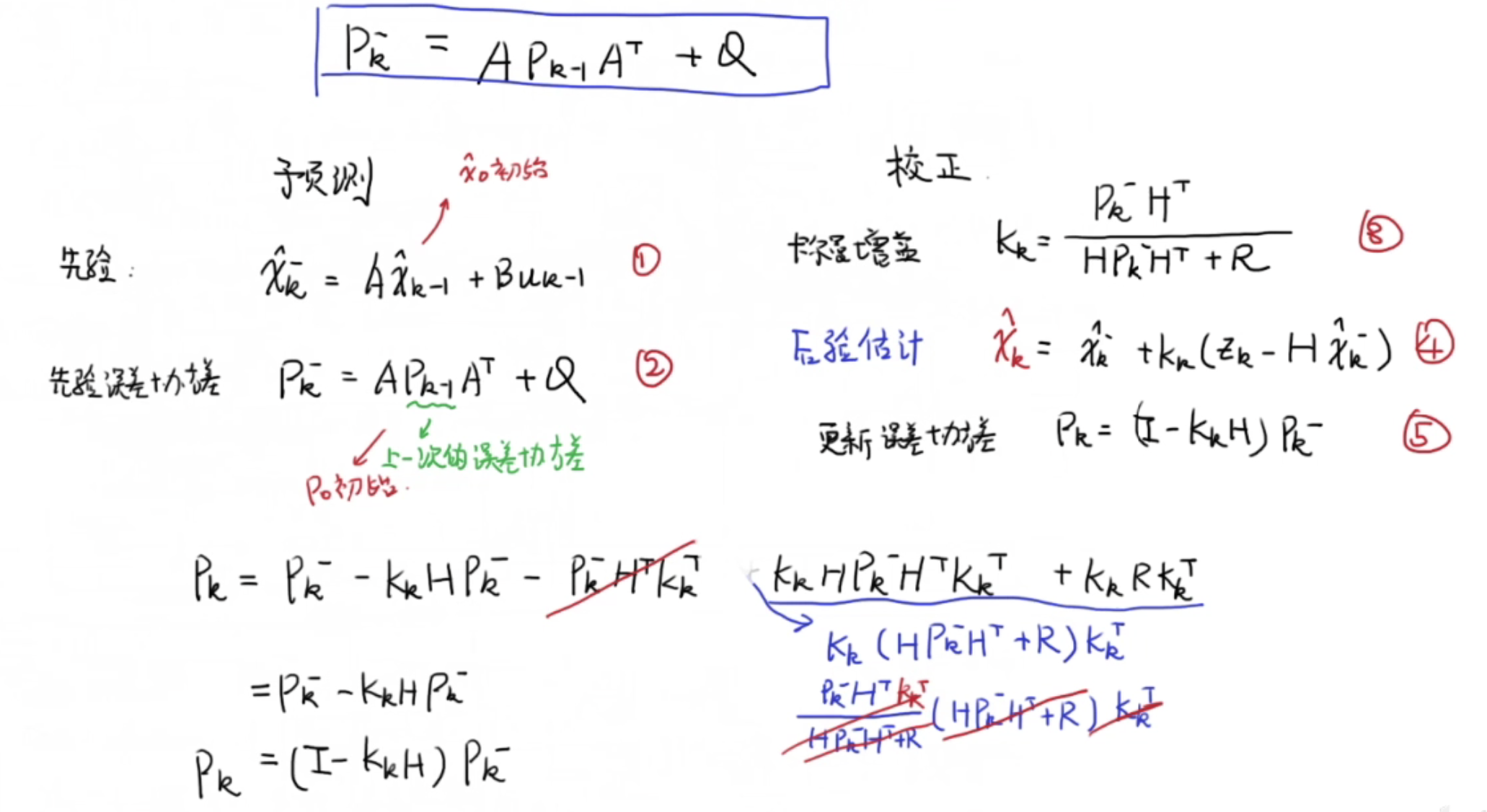

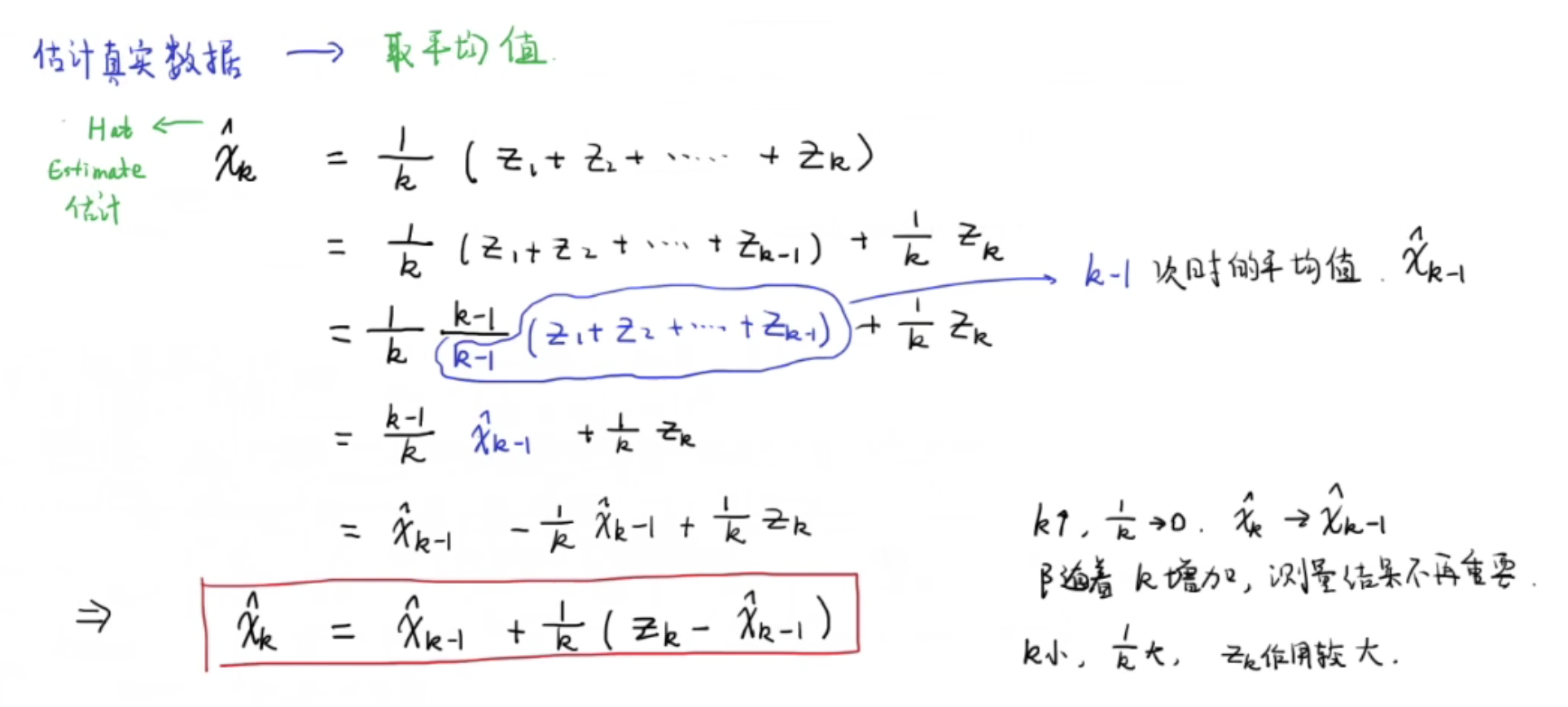

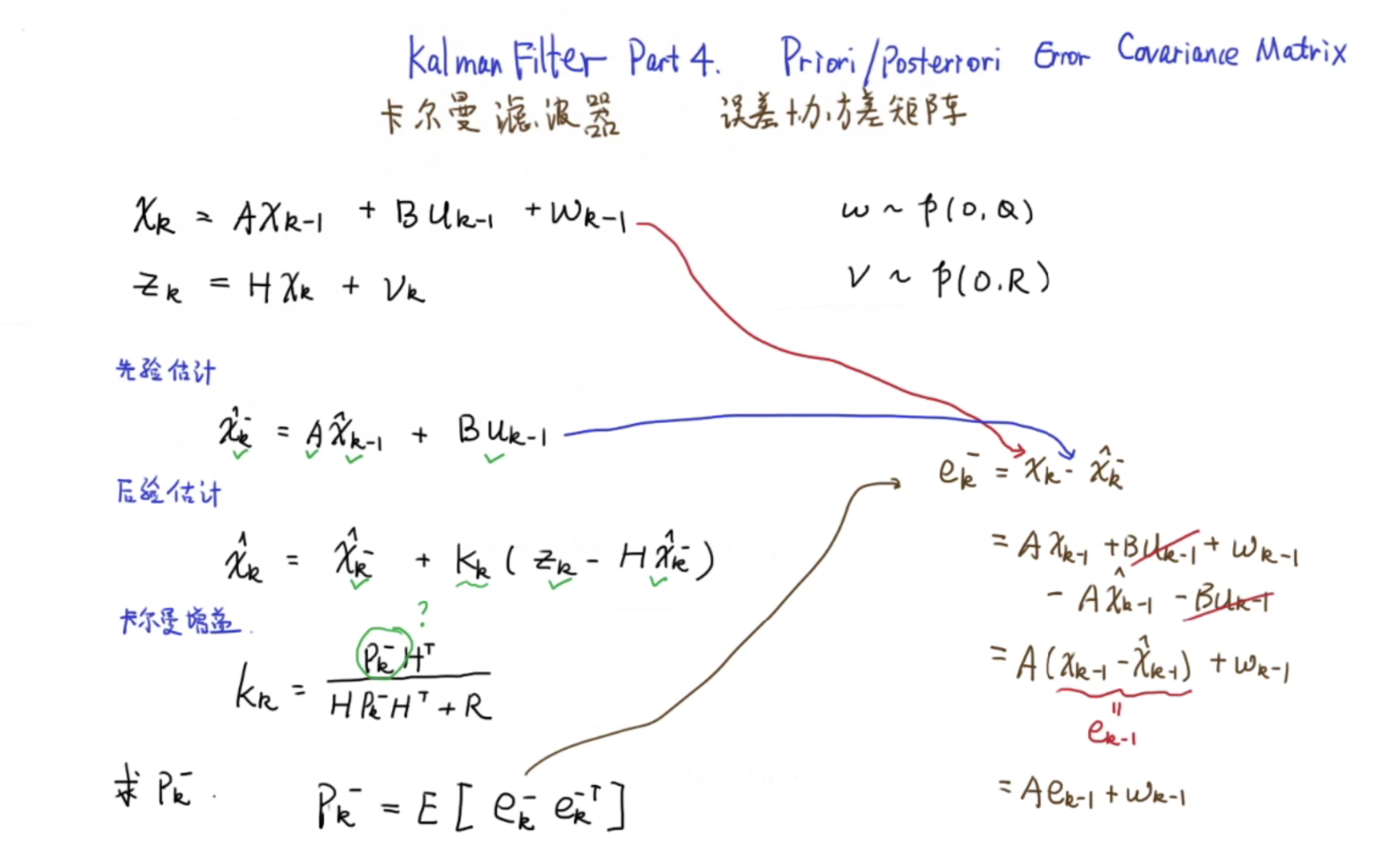

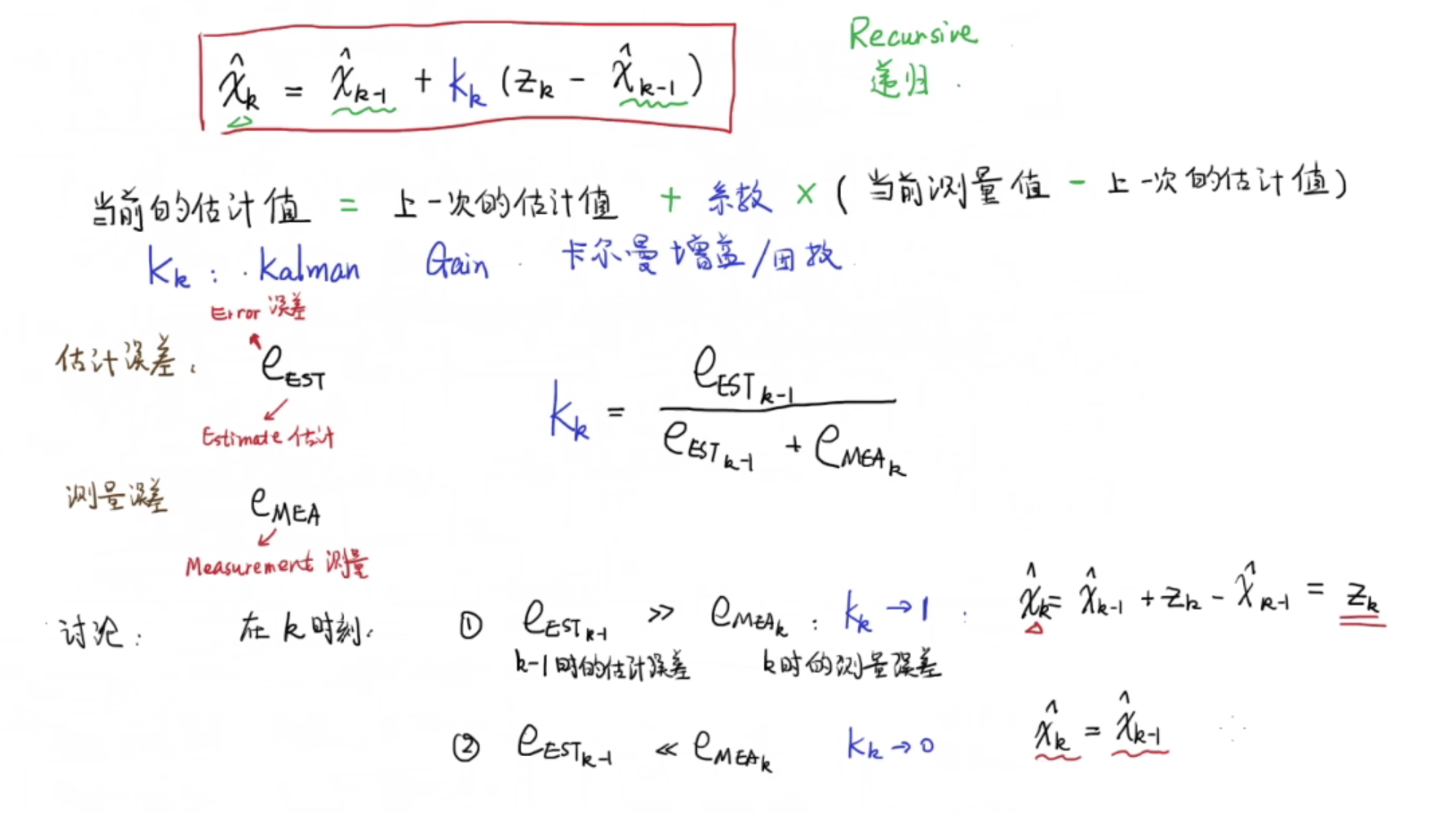

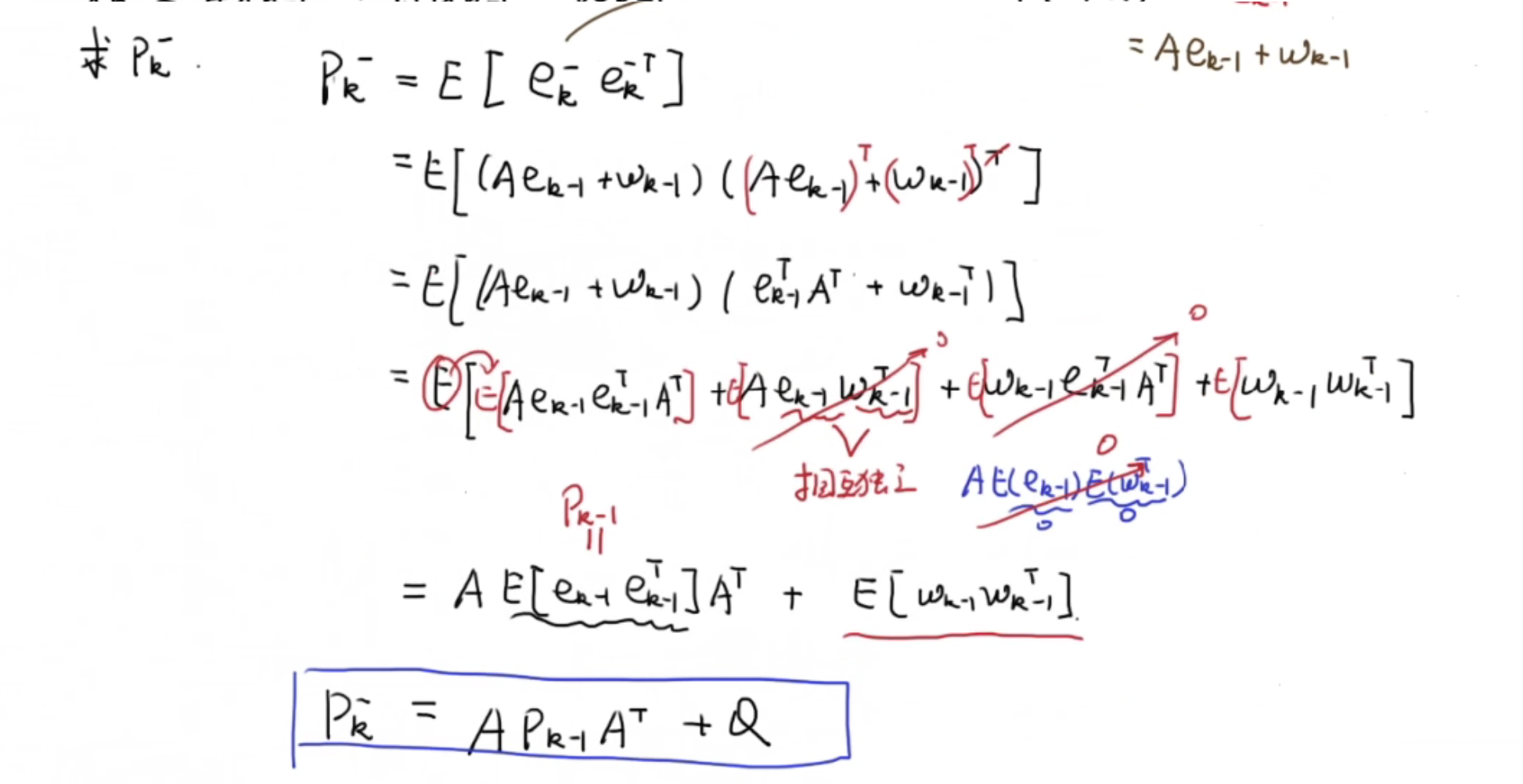

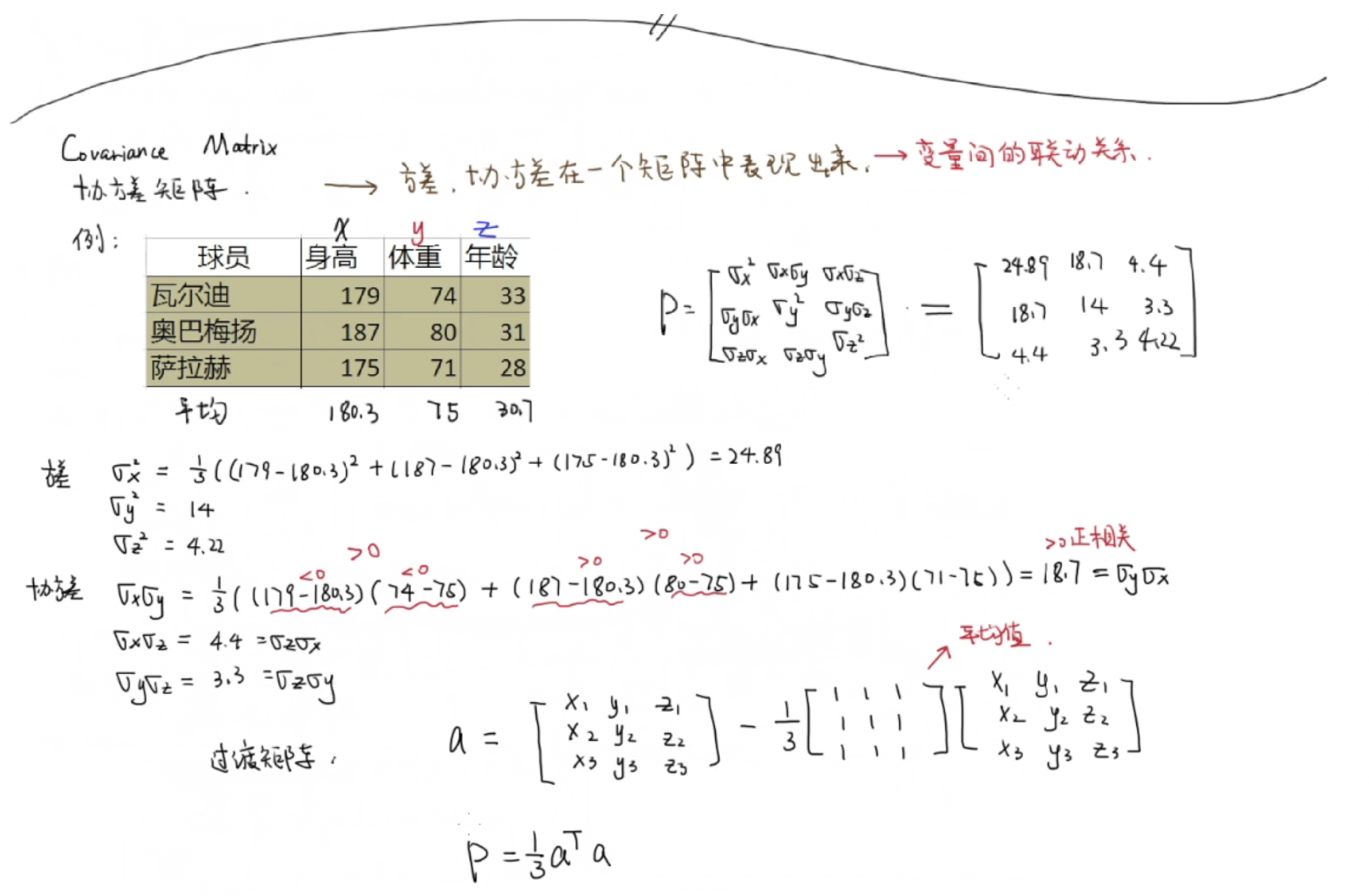

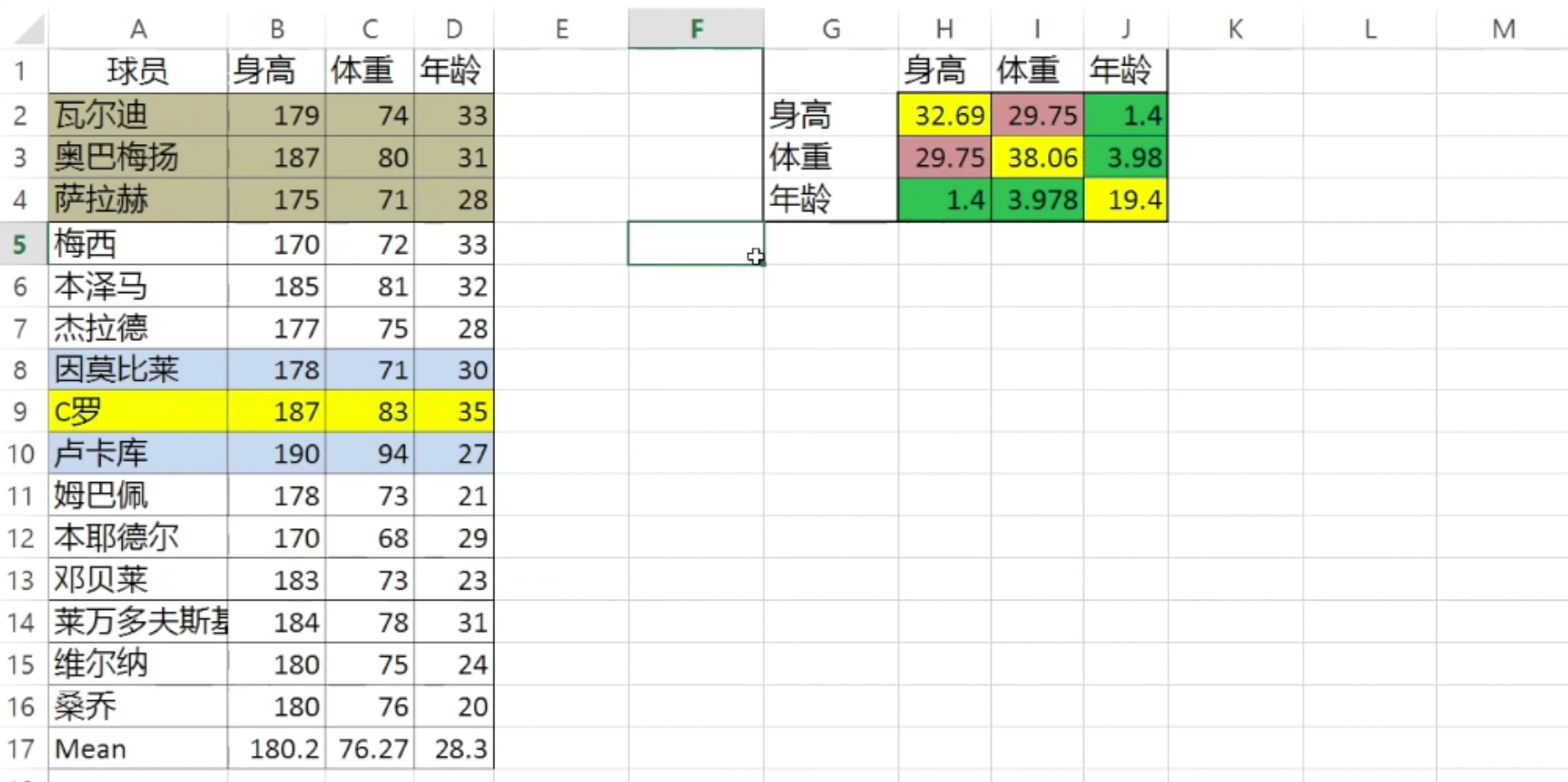

def calc_prior_P(A, P_k_1, Q):
"""
计算先验状态估计协方差矩阵
:param A: 预测使用的状态转移矩阵
:param P_k_1: 上一次的后验状态估计协方差矩阵
:param Q: 预测过程的噪声协方差矩阵
:return: 先验的状态估计协方差矩阵
"""
P_prior_k = np.dot(A, P_k_1)
P_prior_k = np.dot(P_prior_k, A.T) + Q
return P_prior_k

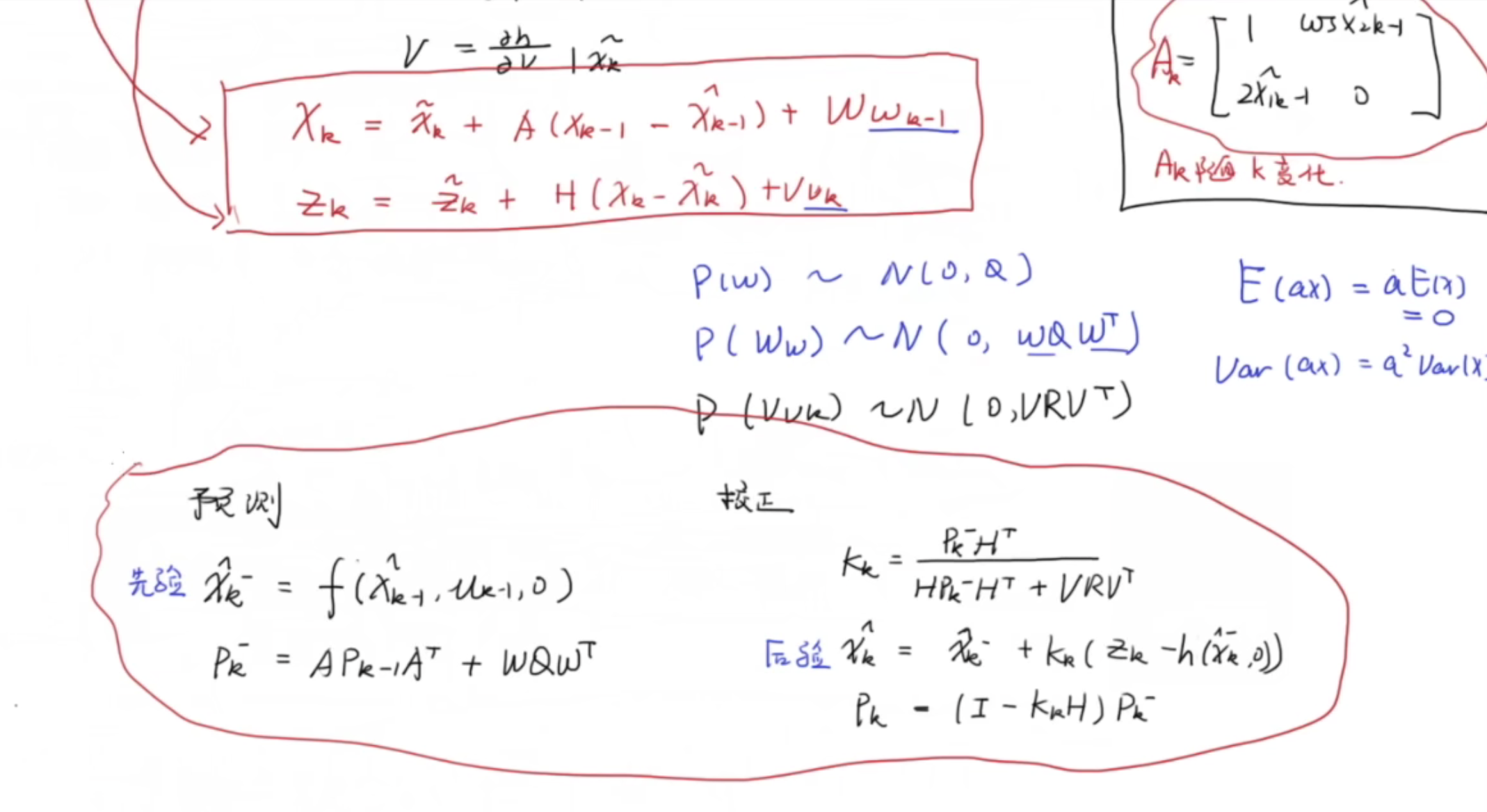

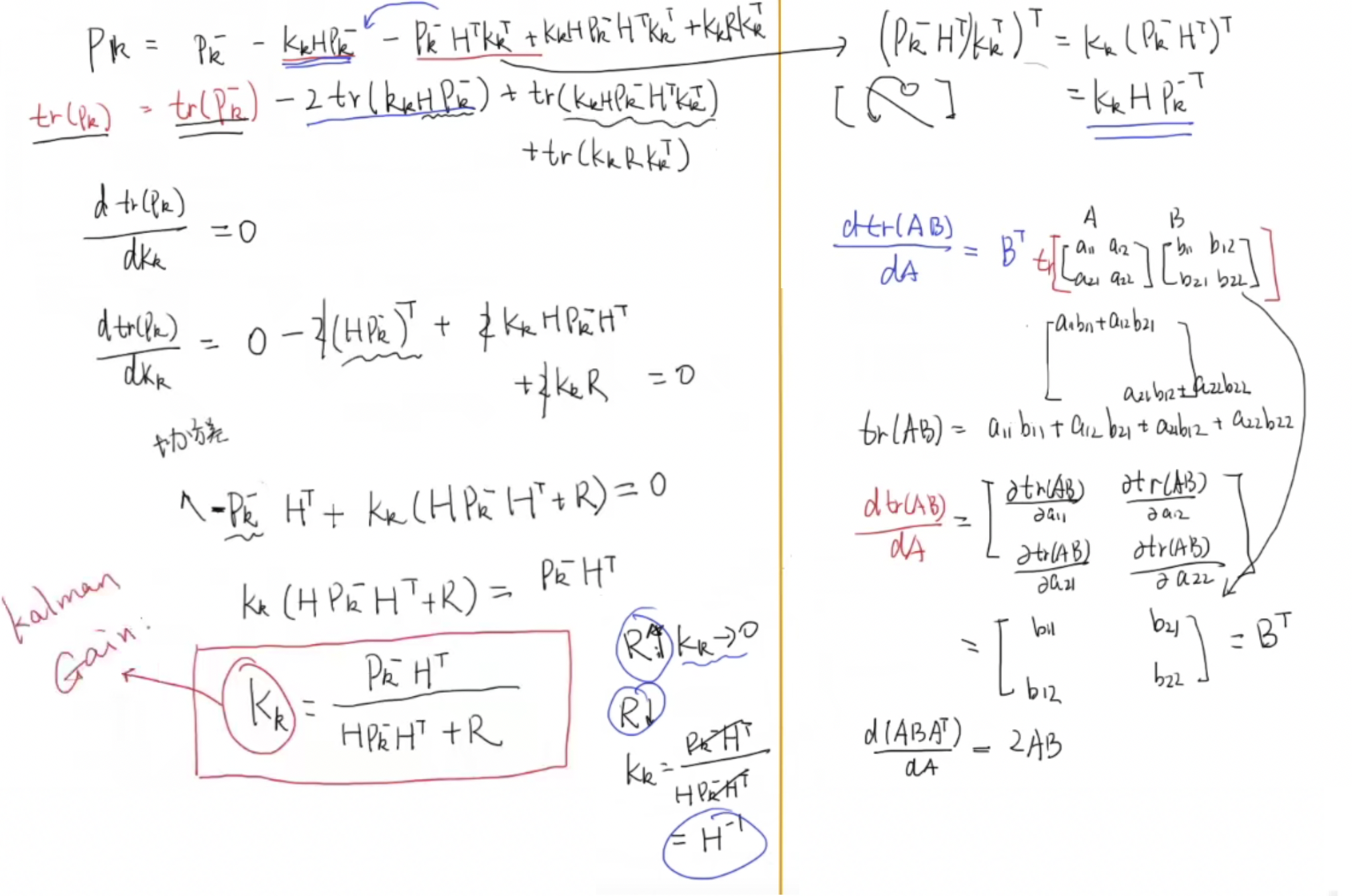

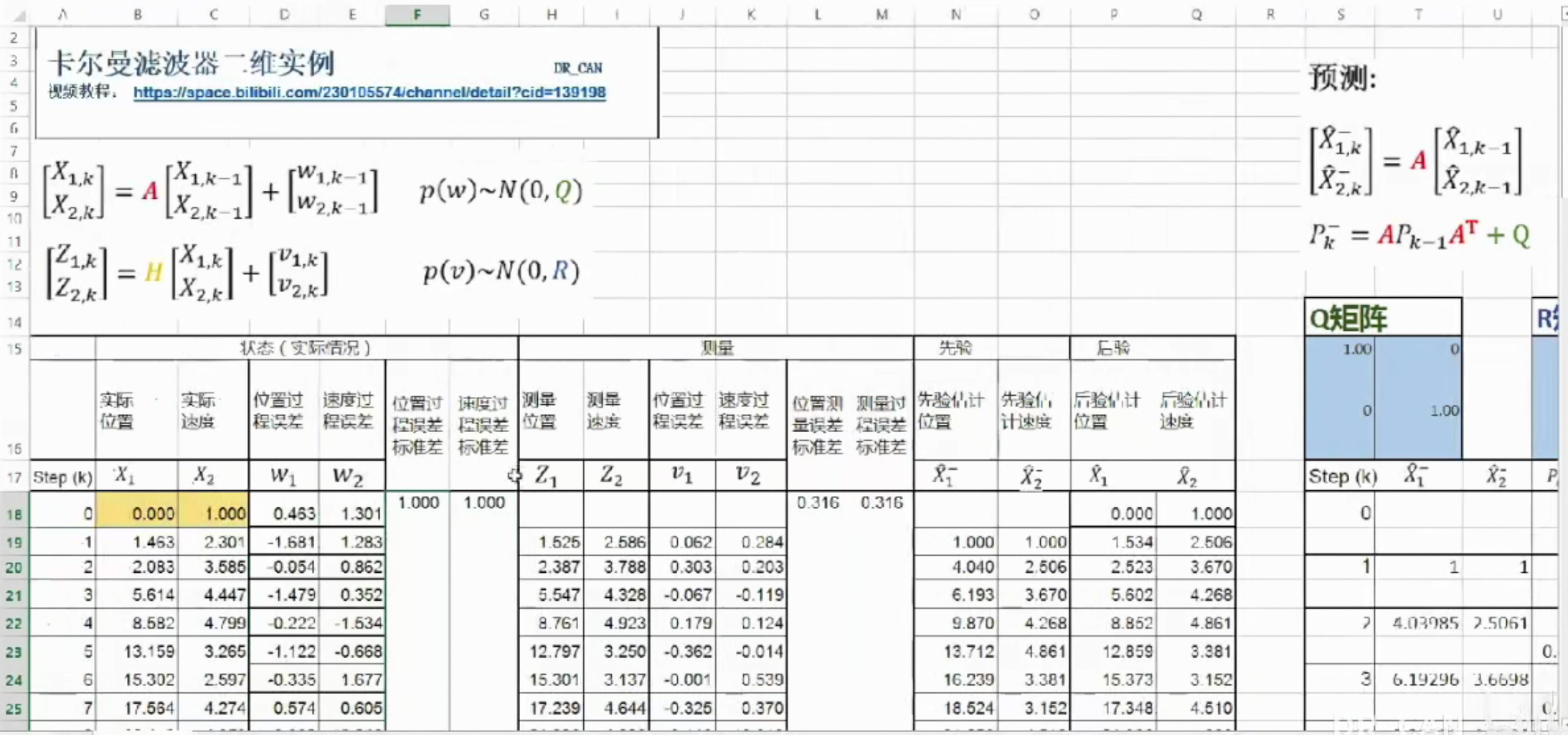

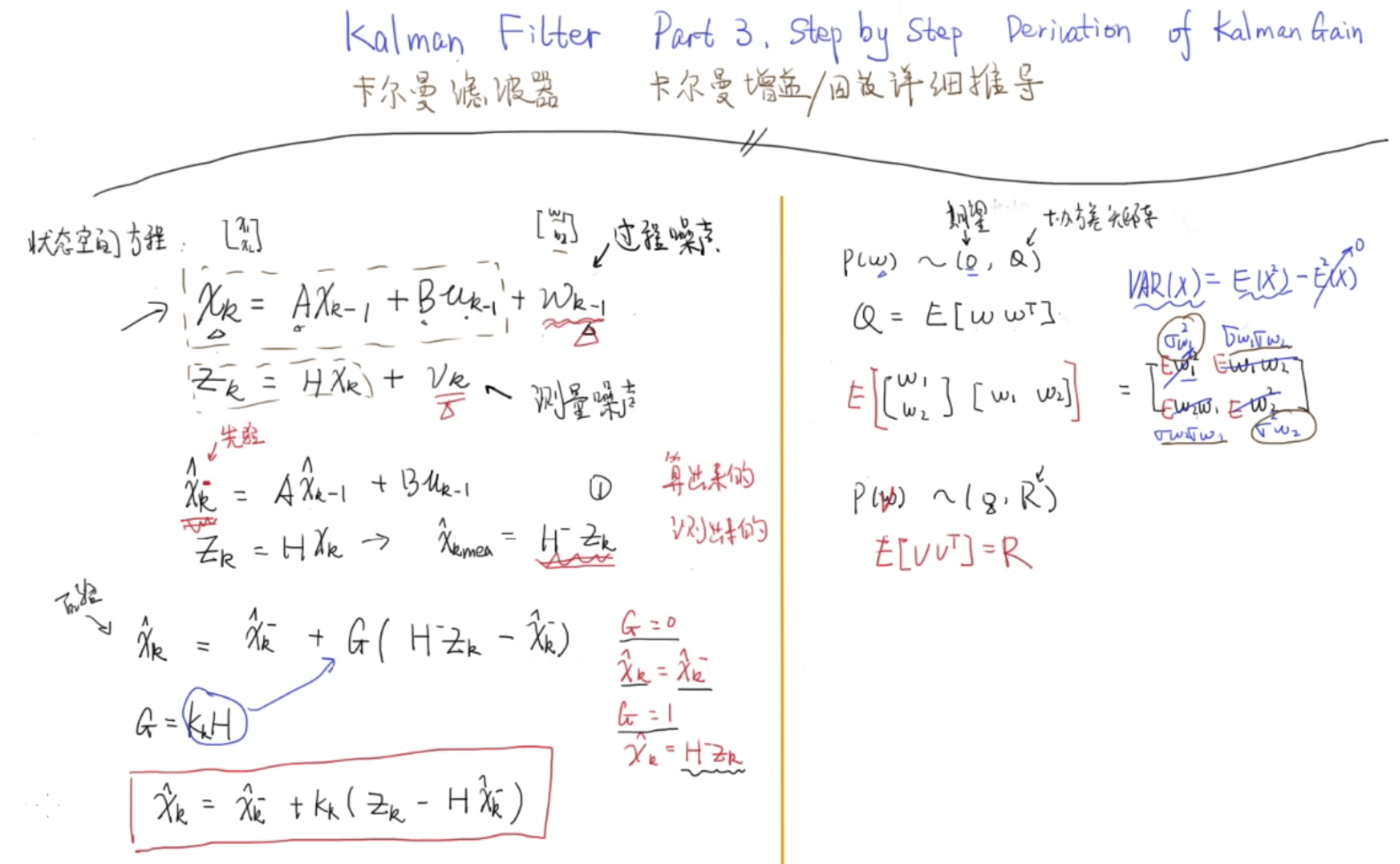

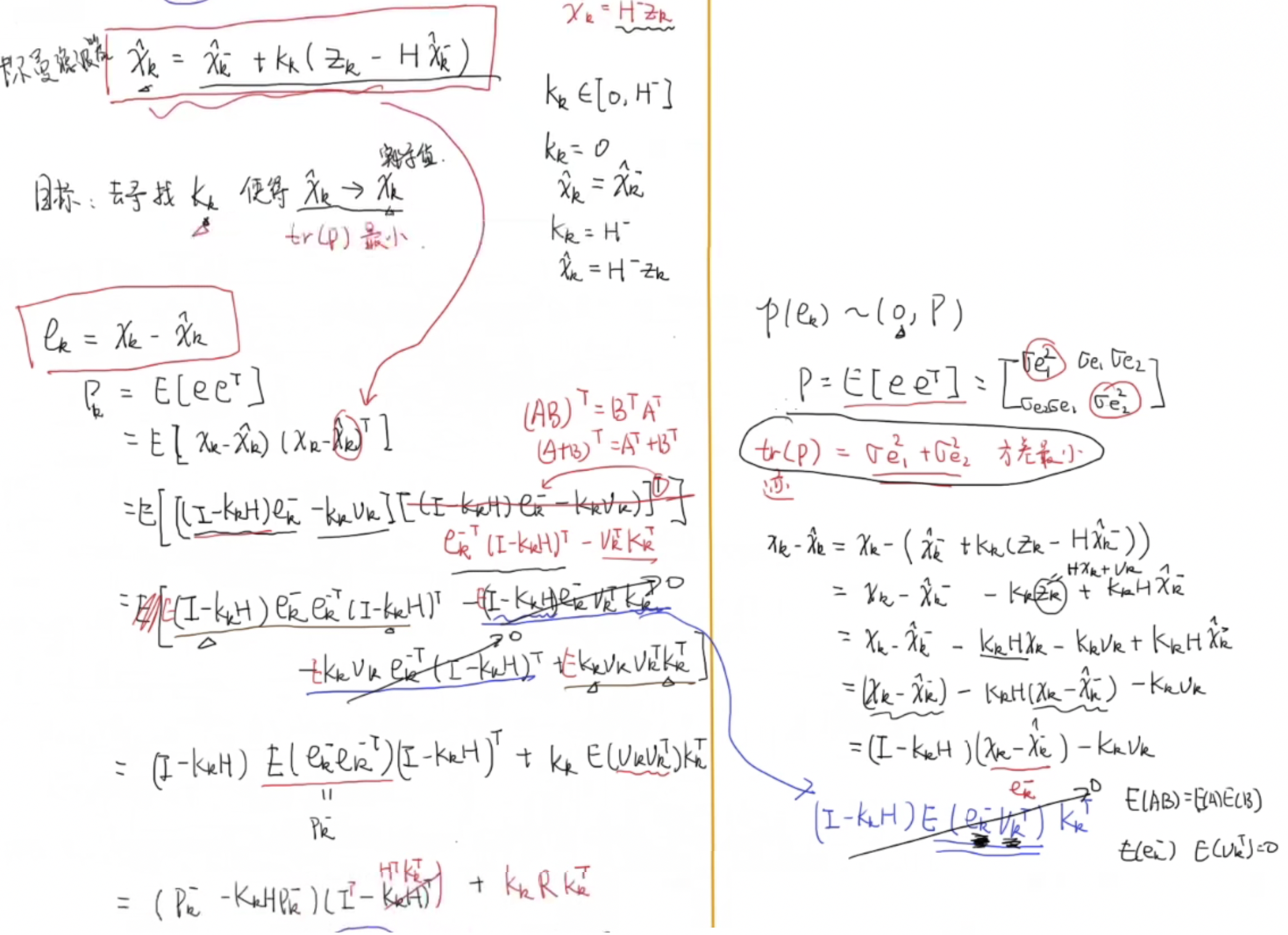

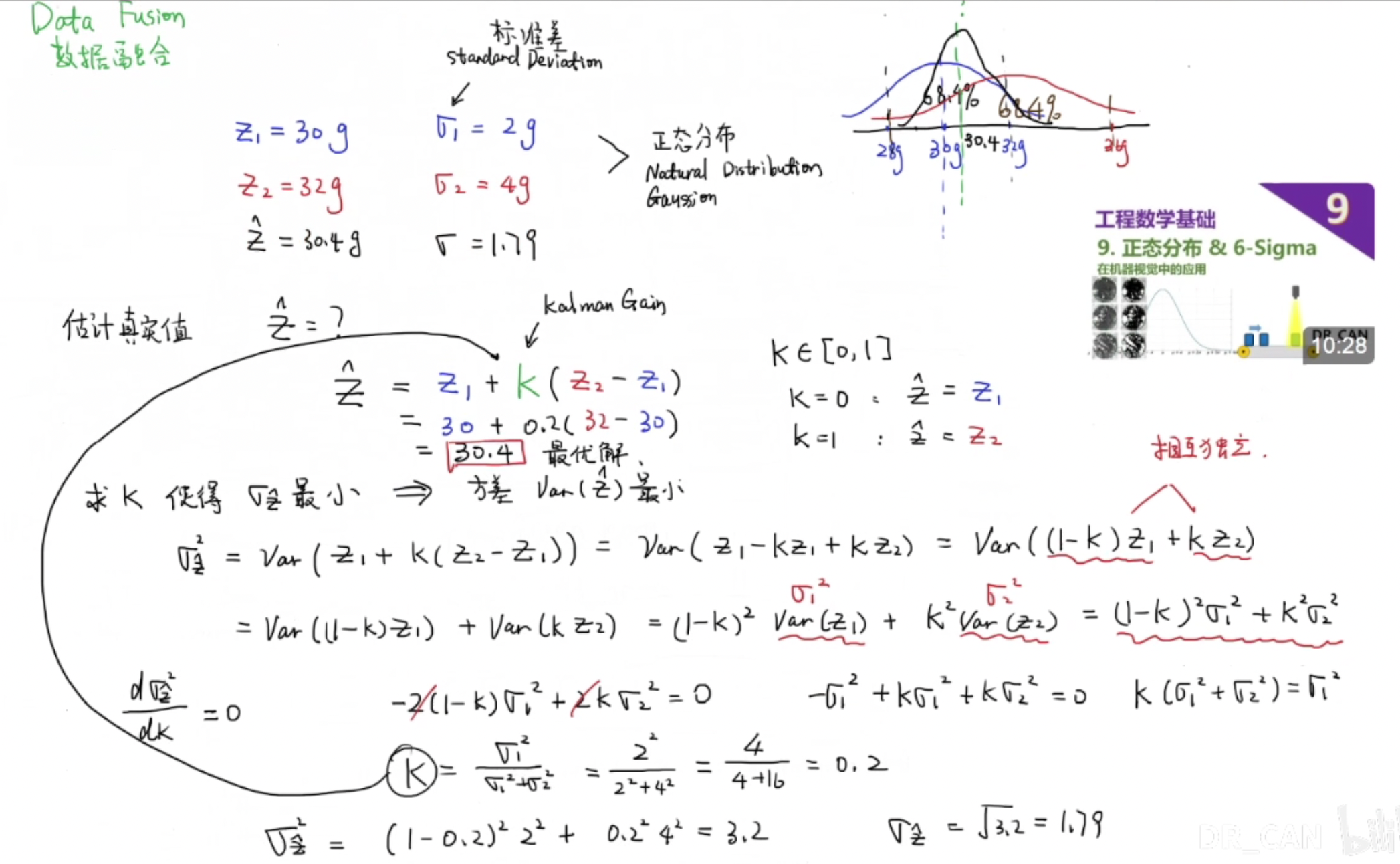

def kalman_gain(P_prior_k, H, R):
"""
计算kalman gain卡尔曼增益
:param P_prior_k: 先验的状态估计协方差矩阵
:param H: 状态变量到测量值的转换矩阵
:param R: 测量噪声协方差矩阵
:return: 卡尔曼增益系数矩阵
"""
up = np.dot(P_prior_k, H.T)
down = np.dot(H, P_prior_k)
down = np.dot(down, H.T) + R
K_k = np.dot(up, np.linalg.inv(down))
return K_k
def calc_posterior_hx(hx_prior_k, K_k, z_k, H):
"""
计算后验估计值
:param hx_prior_k: 先验估计值
:param K_k: 卡尔曼增益系数矩阵
:param z_k: 测量值
:param H: 状态变量到测量值的转换矩阵
:return: 后验估计值
"""
hx_k = hx_prior_k + np.dot(K_k, (z_k - np.dot(H, hx_prior_k)))
return hx_k
def update_posterior_P(K_k, H, P_prior_k):
"""
更新后验状态估计协方差矩阵
:param K_k: 卡尔曼增益
:param H: 状态变量到测量值的转换矩阵
:param P_prior_k: 先验的状态估计协方差矩阵
:return: 后验状态估计协方差矩阵
"""
P_k = P_prior_k - np.dot(np.dot(K_k, H), P_prior_k)
return P_k
if __name__ == "__main__":
"""

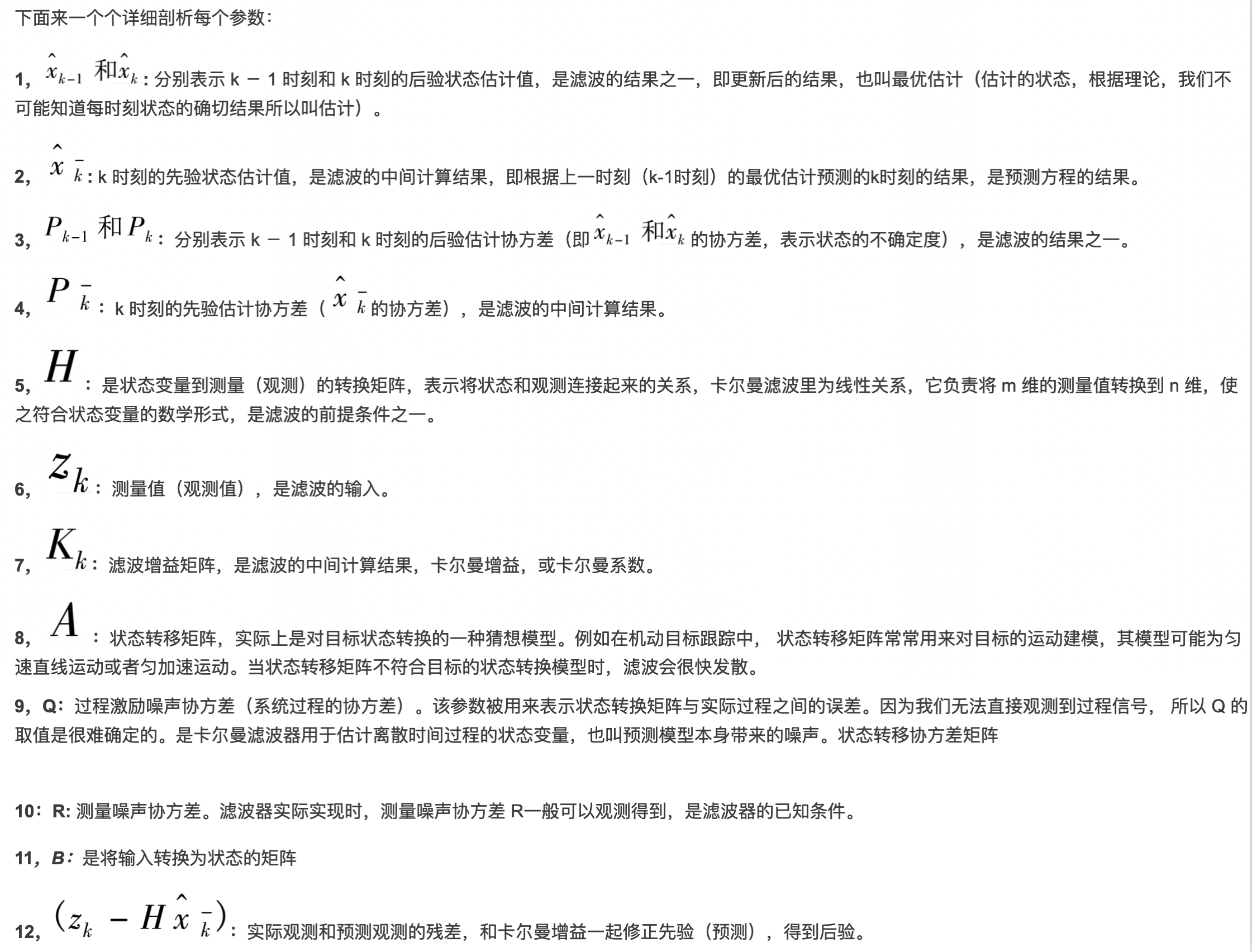

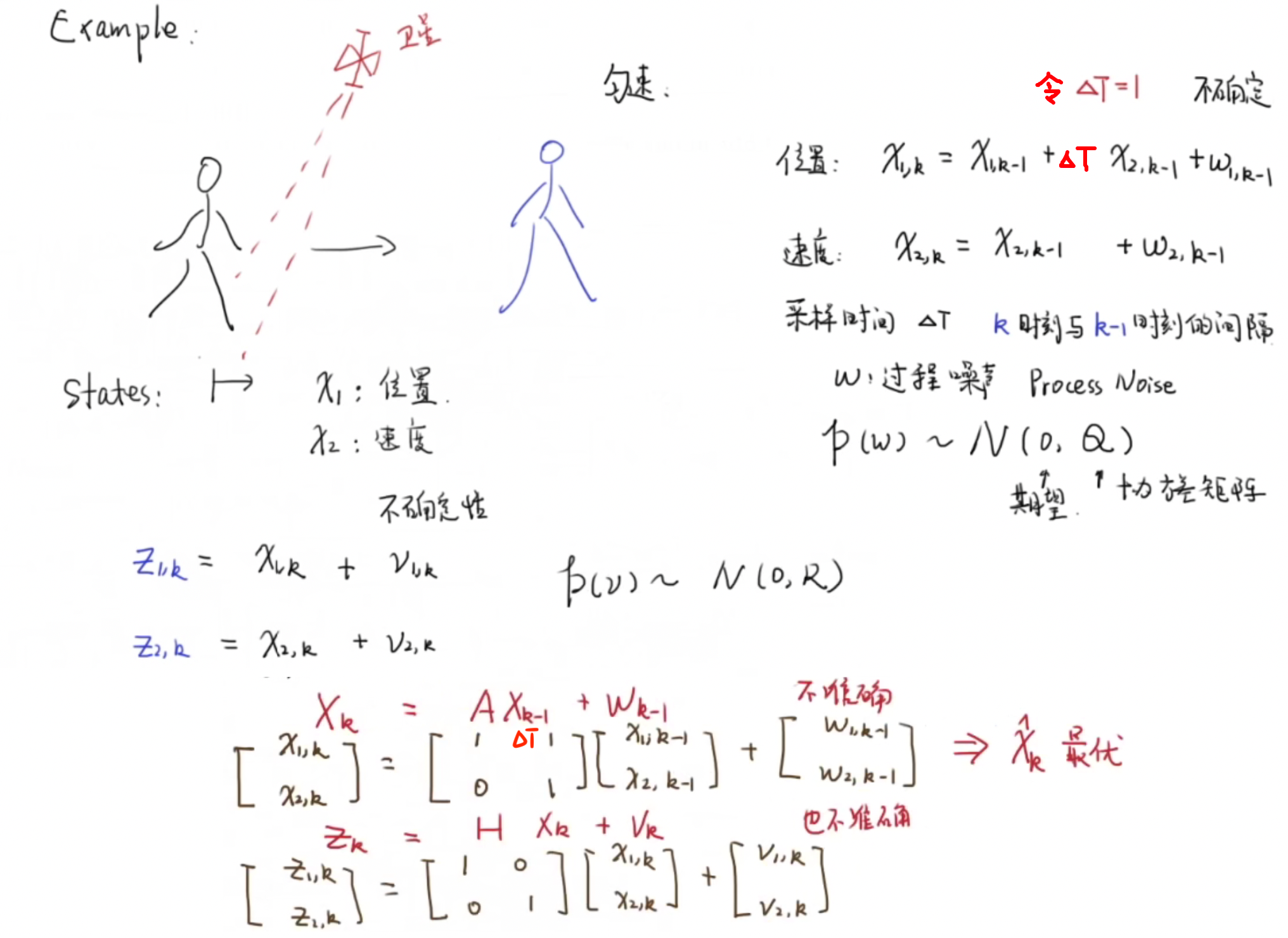

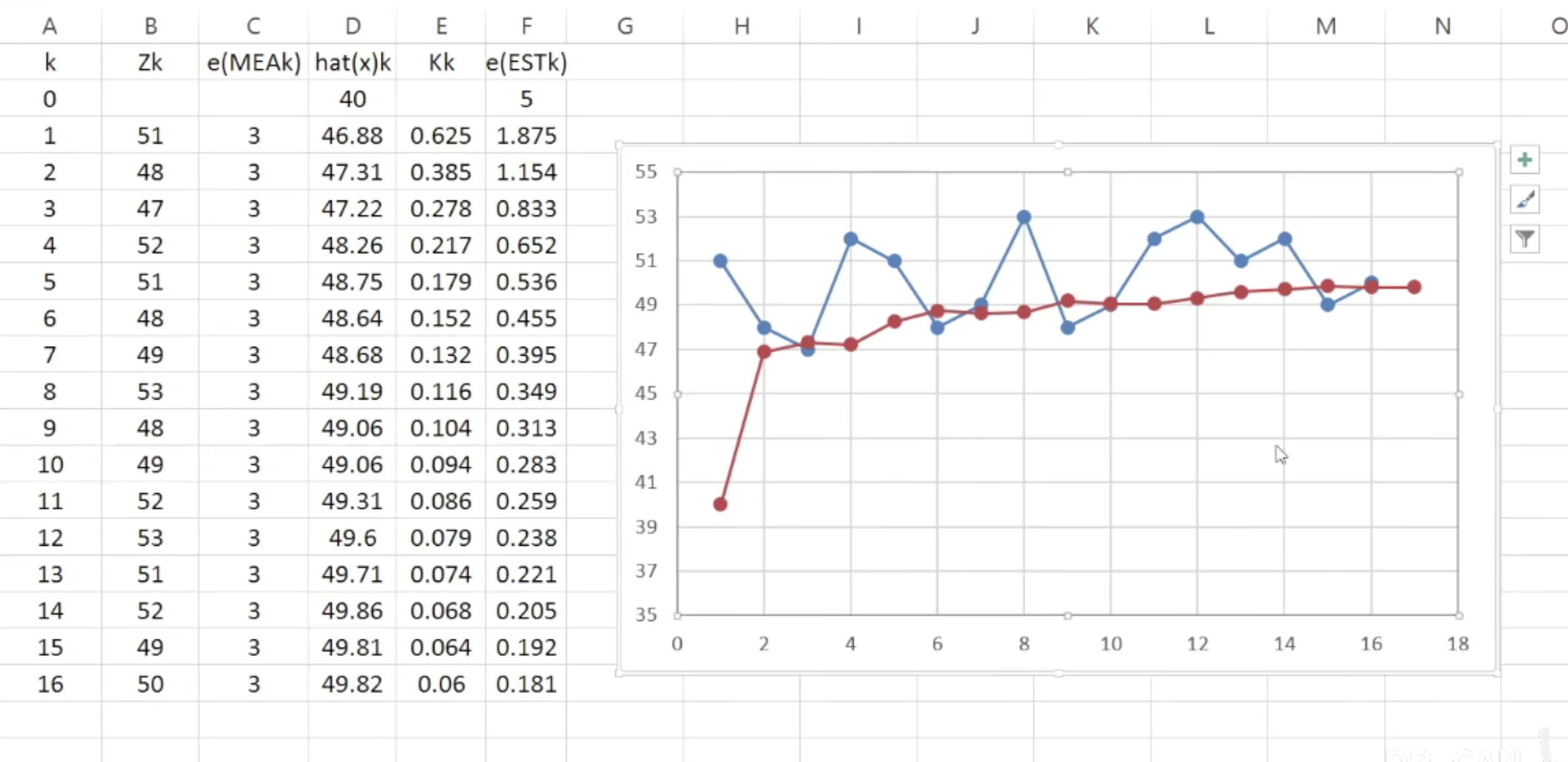

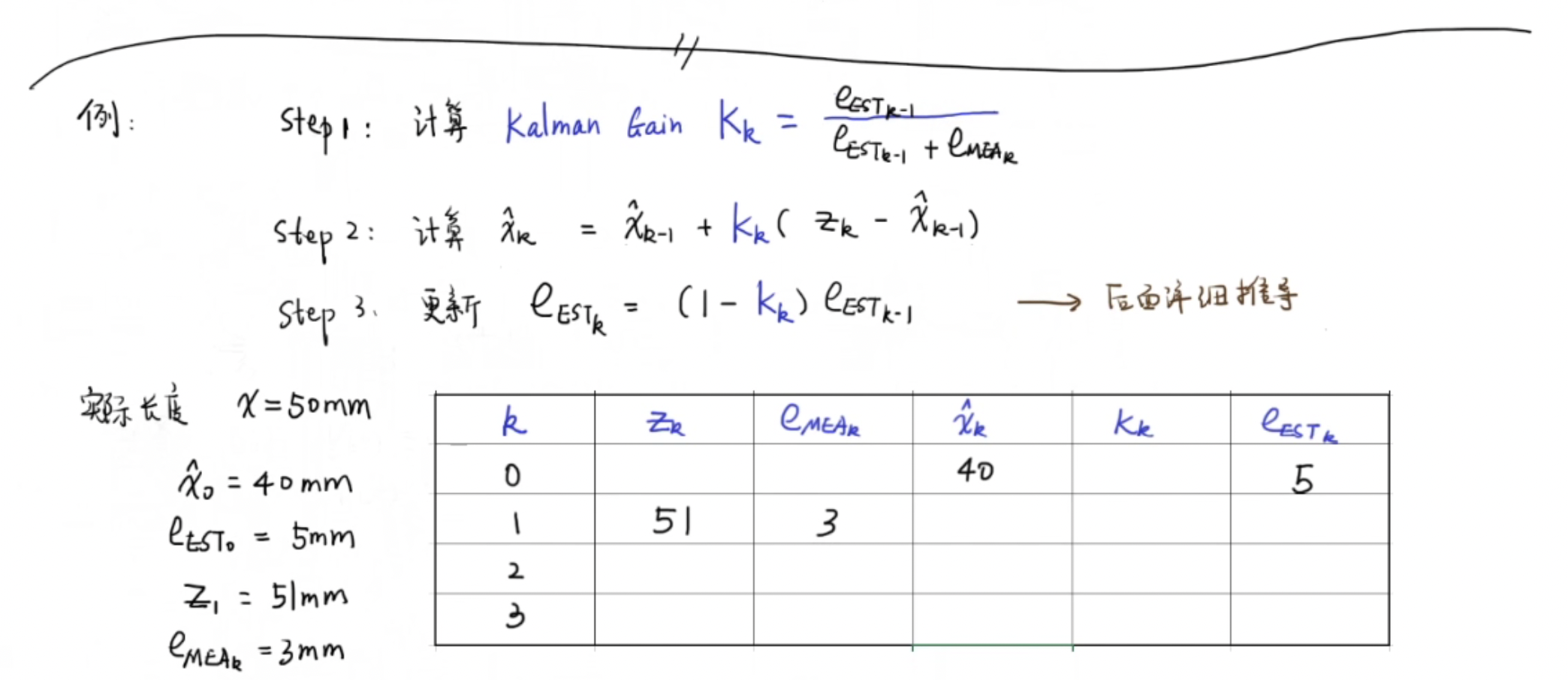

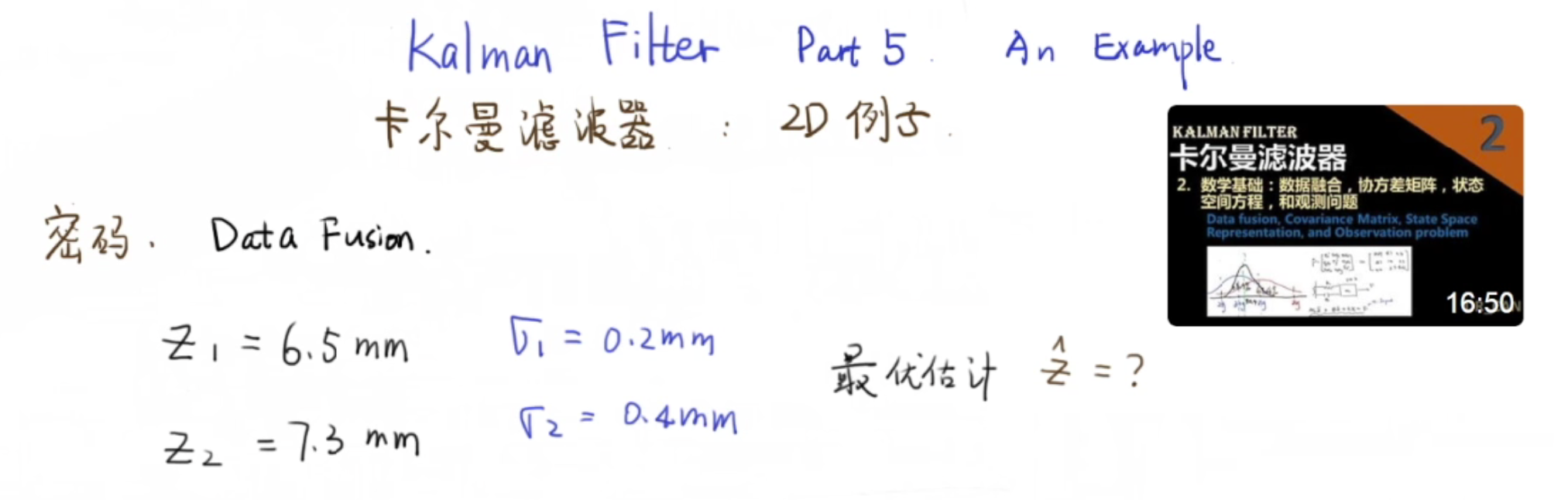

kalman filter 案例实践
"""
position_true = []
position_measure = []
position_prior_est = []
position_posterior_est = []
speed_true = []
speed_measure = []
speed_prior_est = []
speed_posterior_est = []
A = np.array([1, 1, 0, 1]).reshape([2, 2])
B, u_k_1 = None, None
hx_k_1 = np.array([0, 1]).reshape([2, 1])
P_k_1 = np.array([1, 0, 0, 1]).reshape([2, 2])
Q = np.array([5, 0, 0, 5]).reshape((2, 2))
H = np.array([1, 0, 0, 1]).reshape([2, 2])
R = np.array([[1, 0, 0, 1]]).reshape([2, 2])
x_k = np.array([3, 3]).reshape([2, 1]) + np.array([disturb(Q[0][0]), disturb(Q[1][1])])
for i in range(30):
if i != 0:
x_k = np.dot(A, x_k) + np.array([disturb(Q[0][0]), disturb(Q[1][1])])
position_true.append(x_k[0][0])
speed_true.append(x_k[1][0])
z_k = x_k + np.array([disturb(R[0][0]), disturb(R[1][1])])
position_measure.append(z_k[0][0])
speed_measure.append(z_k[1][0])
hx_prior_k = calc_prior_hx(A, hx_k_1, B, u_k_1)
P_prior_k = calc_prior_P(A, P_k_1, Q)
K_k = kalman_gain(P_prior_k, H, R)
hx_k = calc_posterior_hx(hx_prior_k, K_k, z_k, H)
P_k = update_posterior_P(K_k, H, P_prior_k)
position_prior_est.append(hx_prior_k[0][0])
speed_prior_est.append(hx_prior_k[1][0])
position_posterior_est.append(hx_k[0][0])
speed_posterior_est.append(hx_k[1][0])
hx_k_1 = hx_k
P_k_1 = P_k
if True:
fig, axs = plt.subplots(1, 2)
axs[0].plot(speed_true, "-", label="speed_true", linewidth=1)
axs[0].plot(speed_measure, "-", label="speed_measure", linewidth=1)
axs[0].plot(speed_prior_est, "-", label="speed_prior_est", linewidth=1)
axs[0].plot(speed_posterior_est, "-", label="speed_posterior_est", linewidth=1)
axs[0].set_title("speed")
axs[0].set_xlabel('k')
axs[0].legend()
axs[1].plot(position_true, "-", label="position_true", linewidth=1)
axs[1].plot(position_measure, "-", label="position_measure", linewidth=1)
axs[1].plot(position_prior_est, "-", label="position_prior_est", linewidth=1)
axs[1].plot(position_posterior_est, "-", label="position_posterior_est", linewidth=1)
axs[1].set_title("position")
axs[1].set_xlabel('k')
axs[1].legend()
plt.show()
|
